In the demanding world of industrial processing, efficiency and reliability are paramount. Traditional ball mill systems often rely on asynchronous motors combined with gearboxes and couplings to transmit power to the mill drum. However, these components introduce mechanical losses, increase maintenance requirements, and limit efficiency. The gearless drive system revolutionizes this setup by directly coupling the motor to the mill without intermediate gears or couplings.
The ball mill gearless permanent magnet direct drive motor stands out as a transformative technology, particularly in sectors like mining, cement production, and metallurgy. This configuration not only simplifies the mechanical structure but also enhances performance and reliability.
At its core, the ball mill gearless permanent magnet direct drive motor is a type of permanent magnet synchronous motor (PMSM) designed for low-speed, high-torque applications. The stator generates a rotating magnetic field when powered by variable-frequency AC through a VFD. The rotor is embedded with high-performance permanent magnets such as NdFeB (neodymium-iron-boron), which produce a constant magnetic field without external excitation.
The rotor shaft connects directly to loads (e.g., fan impellers, conveyor drums), bypassing gearboxes/couplings. This direct coupling ensures synchronous operation with zero slip and exceptional control accuracy.
Ring type direct-drive permanent magnet motor can be used for modification, allowing seamless integration into existing ball mill setups without altering fundamental mechanisms. Save space, cancel the existing edge transmission mechanism, shorten the transmission chain to reduce the fault points and part of the operation noise.
The system also includes intelligent features such as a magnetic gap detection sensor that monitors bearing wear and eccentric operation in real-time—enhancing predictive maintenance capabilities.
Ball mills operate under heavy load conditions due to grinding media and ore mass. One of the standout features of the ball mill gearless permanent magnet direct drive motor high starting torque is its ability to deliver full torque at zero speed. This eliminates the need for oversized motors or external starting aids.
PM direct drive motors, controlled via direct torque control (DTC) or vector control, provide up to 200-300% starting torque relative to rated values.
Energy savings are equally impressive. By eliminating gearboxes, which introduce 5-10% efficiency losses, these motors achieve overall system efficiencies nearing 100%. Even under partial loads—a common scenario in milling—the efficiency remains high due to constant flux from permanent magnets.
The high power factor (close to 1) reduces reactive power demands, avoiding penalties from utilities and eliminating the need for compensators.
Compared to traditional systems, PM direct drives offer:

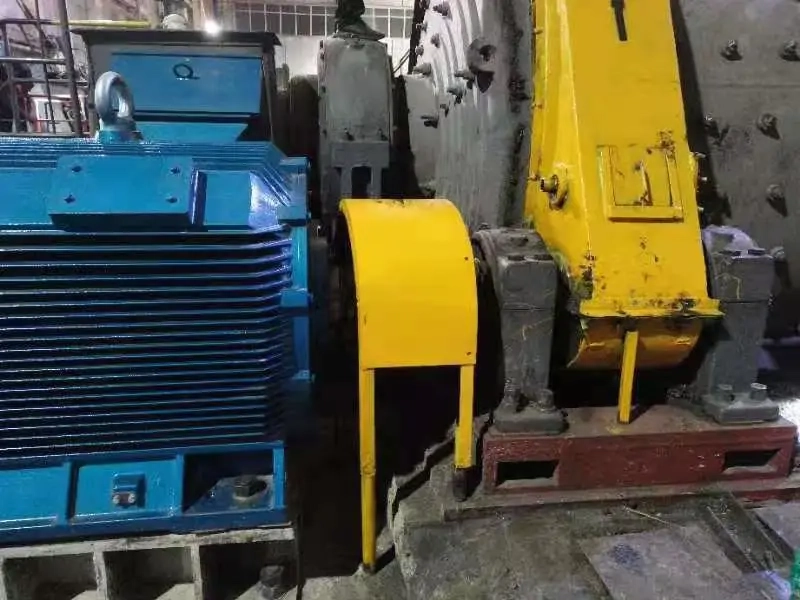

In mining, it’s deployed for ore processing in gold, copper, and iron mines. A notable example is a 1120 kW, 10 kV, 320 RPM PM direct drive motor installed in a gold mine ball mill, replacing geared systems for improved reliability.
For mills over 5 meters in diameter or requiring high torque at low speeds (10–20 RPM), PMDD motors are ideal. High power motor is of assembly structure, easy for installation and transportation, making them suitable even for retrofitting large industrial plants.
These motors offer variable speed operation through VFDs—from 0–100% rated speed—adjusting precisely based on ore hardness or processing needs. Overload capacities up to 250% allow them to handle sudden load spikes effortlessly.
Traditional setups use asynchronous motors plus reducers; PMDD eliminates both. There is no need to change the existing mechanism and installation of the ball mill, simplifying integration while reducing footprint by up to 30%.
|
Metric |
Traditional Geared System |
Gearless PM Direct Drive Motor |
|
Efficiency |
80–90% |
95–97% |
|
Starting Torque |
Needs starter |
200–300% inherent |
|
Maintenance |
High (gears/oil) |
Low |
|
Noise/Vibration |
High |
Low |
|
Power Factor |
~0.85 |
Near unity |
While initial costs are higher due to rare-earth magnets and advanced control systems,payback periods are 2–3 years via energy savings. Moreover,the protection level is highball mill leakage does not affect operation, ensuring longer service life.
Permanent magnets may demagnetize under extreme conditions such as temperatures exceeding 150°C or exposure to reverse magnetic fields. Use high-temperature-resistant magnets (e.g., NdFeB N42SH) along with embedded temperature sensors for safe operations.
Integration requires VFDs; direct line power startup may cause loss of synchronization. Proper harmonic filtering must be ensured during commissioning.
Advancements include AI-integrated predictive diagnostics,hybrid systems combining PM with superconducting elements could push efficiencies beyond 98%. Regulatory standards like IE5 will further accelerate adoption globally.
Manufacturers like ENNENG are leading this transition with innovative products tailored for retrofits or new installations.China Leading Permanent Magnet Motor Providermember of Qingdao Motor Industry Association reflects industry trust in their solutions.
ENNENG offers ring type gearless PMDD motors specifically engineered for ball mills.By adopting the whole seal package type processing technology shorten installation time. Their solutions support both new builds and retrofits using existing mounting holes on big gears—ensuring compatibility without major structural changes.
To inquire about products or request quotes:
Phone: +86 18562780228
Email: sales@enpmsm.com
Q: Can PMDD replace all types of ball mill drives?
(Ring type direct-drive permanent magnet motor can be used for modification). However,the second type which uses three-phase synchronous motors cannot be replaced directly.
Q: What’s required for cooling?
Water cooling interface: standard 1-inch K-type mining quick connectorflow rate is 3 m³/min at inlet pressure of 0.6 MPa.
Q: Are there shutdown protections?
Yes,design includes PT100 sensors; shutdown occurs at stator coil temperature ≥120℃ or bearing ≥85℃.
Q: What is typical overload capability?
Overload capacity (up to 150-200%) enables precise control under variable load conditions.
Q: How does it compare with induction motors?
◇ Efficiency: PMDD >96%, Induction ~90–95%
◇ Maintenance: No brushes/gears vs regular upkeep
◇ Starting: High torque/low current vs starter needed
◇ Size: PMDD is ~30–50% smaller
