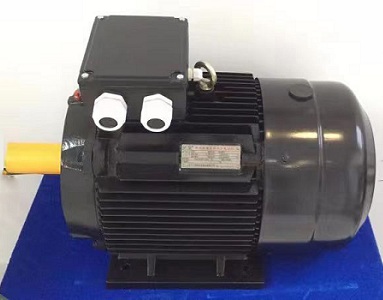

Energy efficiency standards |
comply with GB30253-1 grade |
Work mode |
S1 |
|
Installation dimensions |
comply with IEC standard |
Control mode |
variable frequency vector control |
|
Power range |
3 〜315kW |
Install type |
IMB3 IMB5 IMB35 |
|
Cooling way |
IC411 or IC416 |
Rated efficiency |
50,75,125,150Hz(customized as per requirement) |
|
Insulation class |
F（H） |
Optional parts |
Encoder, spiral transformer, PTC, PT100 |
|
Protection grade |
IP54(IP23 customizabe) |
Wiring type |
junction box (aviation plug can be customized as per requirement) |
|
Installation |
IMB3 IMB5 IMB35 |
Rated voltage |
380V±10% |
|
Required environment |
Below 1000m altitude |
||
|
Temperature -15〜45°C |
|||
|
Relative humidity below 90% |
|||
Easy for replacement
The same installation size with asynchronous motor.
Due to the same motor seat number with same asynchronous motor(output<315kW), it can be easily changed.
Note) Some type of motors are longer than asynchronous motor. Details refer to outer dimension drawing.
High Power Factor
To reduce the capacity of power receiving equipment.
There is no doubt of high efficiency. Compared with asynchronous motor and standard type synchronous motor, it can reduce the current volume of equipment due to high power factor.
Speed control as per height
It is PG vector control.
Suitable for printer, punch compactor.
High efficiency & Energy Saving
Motor efficiency is equal to IE4 (Ultra high efficiency: above GB1 grade)
Note: IE4 is a efficiency grade specified in IEC 60034-30.
|
Type |
Power (KW) |
Speed（r/min) |
Torque (N.M) |
Efficiency |
Frequency（Hz） |
|
TYP132S-6 |
3 |
1000 |
28.7 |
85.6 |
50 |
|
TYP132M1-6 |
4 |
38.2 |
86.8 |
||
|
TYP132M2-6 |
5.5 |
52.5 |
88 |
||
|
TYP160M-6 |
7.5 |
71.6 |
89.1 |
||
|
TYP160L-6 |
11 |
105.1 |
90.3 |
||
|
TYP180L-6 |
15 |
143.3 |
91.2 |
||
|
TYP200L1-6 |
18.5 |
176.7 |
91.7 |
||
|
TYP200L2-6 |
22 |
210.1 |
92.2 |
||
|
TYP225M-6 |
30 |
286.5 |
92.9 |
||
|
TYP250M-6 |
37 |
353.4 |
93.3 |
||
|
TYP280S-6 |
45 |
429.8 |
93.7 |
||
|
TYP280M-6 |
55 |
525.3 |
94. 1 |
||
|
TYP315S-6 |
75 |
716.2 |
94.6 |
||
|
TYP315M-6 |
90 |
859.5 |
94.9 |
||
|
TYP315L1-6 |
110 |
1050.5 |
95. 1 |
||
|
TYP315L2-6 |
132 |
1260.6 |
95.4 |
||
|
TYP355M1-6 |
160 |
1528 |
95.6 |
||
|
TYP355M2-6 |
200 |
1910 |
95.8 |
||
|
TYP355L1-6 |
220 |
2101 |
95.8 |
||
|
TYP355L2-6 |
250 |
2387.5 |
95.8 |
||
|
TYP355L3-6 |
280 |
2674 |
95.8 |
||
|
TYP112M-6 |
4 |
1500 |
25. 5 |
88.6 |
75 |
|
TYP132S-6 |
5.5 |
35 |
89.6 |
||
|
TYP132M-6 |
7.5 |
47.8 |
90.4 |
||
|
TYP160M-6 |
11 |
70 |
91.4 |
||
|
TYP160L-6 |
15 |
95.5 |
92.1 |
||
|
TYP180M-6 |
18.5 |
117.8 |
92.6 |
||
|
TYP180L-6 |
22 |
140.1 |
93 |
||
|
TYP200L-6 |
30 |
191 |
93.6 |
||
|
TYP225S-6 |
37 |
235.6 |
93.9 |
||
|
TYP225M-6 |
45 |
286.5 |
94.2 |
||
|
TYP250M-6 |
55 |
350.2 |
94.6 |
||
|
TYP280S-6 |
75 |
477.5 |
95 |
||
|
TYP280M-6 |
90 |
573 |
95.2 |
||
|
TYP315S-6 |
110 |
700.3 |
95.2 |
||
|
TYP315M-6 |
132 |
840.4 |
95.6 |
||
|
TYP315L1-6 |
160 |
1018.7 |
95.8 |
||
|
TYP315L-6 |
185 |
1177.8 |
95.9 |
||
|
TYP315L2-6 |
200 |
1273.3 |
96 |
||
|
TYP355M1-6 |
220 |
1400.7 |
96 |
||
|
TYP355M2-6 |
250 |
1591.7 |
96 |
||
|
TYP355L1-6 |
280 |
1782.7 |
96 |
||
|
TYP355L2-6 |
315 |
2005.5 |
96 |
Application:
It can be used in general industrial equipment, cooling towers, bag filters, papermaking machinery, textile machinery, transmission tools, pumps, extruders, air compressors, fans, etc. It can basically replace induction motors and DC motors in various applications.
