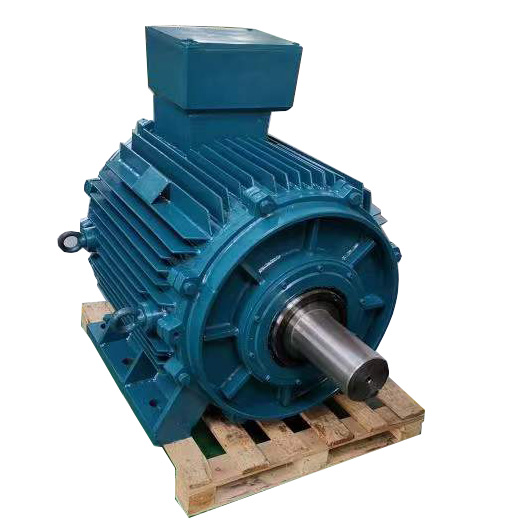

Enneng’s low-speed, high-power permanent magnet synchronous motor (PMSM) is designed for belt conveyor drive systems in ports, mining machinery, and bulk material handling applications. The customized permanent magnet direct drive system provides high torque at low speed, efficient power transmission, and flexible installation. Available configurations support different torque, speed, voltage, cooling, shaft, and mounting requirements, making the motor suitable for new conveyor systems and selected retrofit projects.
The PMSM is designed for belt conveyor systems requiring stable torque at low operating speeds. Available torque configurations range from 3,000 to 100,000 N·m, subject to final project requirements.
The permanent magnet drive system reduces dependence on multi-stage transmission components and supports efficient operation for long-running conveyor systems.
Motor power, speed, voltage, cooling method, mounting arrangement, shaft structure, and protection grade can be configured according to the conveyor system.
Available options include horizontal installation, natural cooling or water cooling, and circular, hollow, or splined shaft designs.
The motor is designed for demanding low-speed, high-power belt conveyor applications in mining, ports, and other industrial material-handling environments.
| Parameters | ||
| Torque range | 3000~100,000N·m | |
| Seat No. | 315,355,400,500,560 | |
| Voltage | 380VAC, 660VAC, 1140VAC, 3300VAC or 6K,10K | |
| Speed range | 0~60, 75, 90rpm/min, or customized as per customers’ requirement | |
| Cooling type | natural cooling, water cooling | |
| Installation | horizontal installed or customized as per customers’ requirement | |
| Protection grade | IP54 (higher grades can be customized) | |
| Shaft standard | circular shaft with keyway, hollow shaft with a key, hollow shaft with internal spline | |
| Performance, cost, parameter comparisons | ||
| parameters | low-speed big torque permanent magnet motor transmission system | high-speed motor + reducer + hydraulic coupler |
| Rated power(KW) | 132 | 132 |
| Rated torque(N·m) | 20000 | 20000 |
| Rated voltage(V) | 380 | 380 |
| Current(A) | 211.5 | 240 |
| Synchronous speed(r/min) | 60 | 60 |
| Efficiency(%) | 96.4 | 93×0.9=83.7 |
| Power factor | 0.9942 | 0.85 |
| Starting torque multiple | 1.5 | 1.5 |
| Max torque multiple | 2 | 1.5 |
| Weight(t) | 1.8 | 3.2 |
Suitable for coal, ore, and other bulk material conveyor systems used in mining operations.
Designed for loading, unloading, and long-distance material handling equipment in ports and terminals.
Applicable to conveyor systems transporting minerals, aggregates, and other bulk materials.
Suitable for selected projects upgrading existing conveyor drive systems with a customized permanent magnet motor solution.
A:It is a permanent magnet synchronous motor designed to drive belt conveyor systems. It provides stable low-speed operation and high torque for demanding material-handling applications.
A:The current product range supports torque from 3,000 to 100,000 N·m. Typical speed configurations include 0–60 rpm, 75 rpm, or 90 rpm, with customized speeds available according to project requirements.
A:It may be suitable for selected new-build or retrofit projects. The conveyor load, belt speed, pulley dimensions, motor power, torque, voltage, mounting structure, and existing transmission system must be evaluated first.
A:Please provide the conveyor capacity, belt speed, pulley diameter, lifting height, belt length, load characteristics, motor power, voltage, installation dimensions, and operating environment. Existing motor nameplate data and conveyor drawings are also helpful.
