Combined with the small size design of the TYB series standard type, it takes into account the high efficiency of the TYP series general type and the versatility of the installation size of the same frame. Develop customized special motor products for air compressors, special rubber tire machinery, and other equipment. It can be said to be customized for use in coal mines, mines, oil fields, and other explosion-proof special products.
The same installation size with asynchronous motor/DC motor.
Due to the same motor seat No. Design with an asynchronous motor(output<2800kW), it can be easily changed.
Note. Some types of motors are longer than asynchronous motors. Details refer to outer dimension drawing.
Motor efficiency is higher than IE4 (Ultra-high efficiency: above GB1 grade)
Note: IE4 has an efficiency grade specified in IEC 60034-30.
It can be PG vector controlled.
Note: It needs a PG feedback card for the frequency converter.
Reduce the capacity of power receiving equipment.
There is no doubt of high efficiency. Compared with an asynchronous motor, it can reduce the current volume of equipment due to the high power factor.
|Energy efficiency standards||comply with IE4 grade||Work mode||S1|
|Installation dimensions||comply with IEC standard||Control mode||variable frequency vector control|
|Power range||15〜6300kW||install type||IMB3 IMB5 IMB35|
|Cooling way||IC411 or IC416||rated speed||750,1000,1500 RPM|
|Insulation class||F（H）||Optional parts||Encoder, spiral transformer, PTC, PT100|
|Protection grade||IP55(IP23 start type is customizable)||Wiring type||junction box (aviation plug can be customized as per requirement)|
|Installation||IMB3 IMB5 IMB35||rated voltage||380V 660V 1140V 3300V 6KV 10KV|
|Required environment||below 1000m altitude|
|relative humidity below 90%|

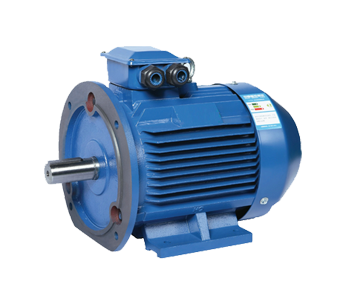

It adopts a universal frame size, which is suitable for driving various mechanical equipment, with good interchangeability; the efficiency is over 95%, the power factor is over 98%, the starting speed is huge, and the overload capacity is strong. This type of motor can be customized according to the actual application requirements of users.
Application: Our General and Standard Type of Permanent Magnet Motor are widely used in power stations, metallurgy, chemicals, water treatment, coal mining, textiles, rubber, petroleum, medicine, paper, cooling tower, food, and other industries to help companies reduce emissions, save energy, reduce consumption, reduce noise to reach green production.
Adopt high-efficiency NdFeB permanent magnet, no excitation loss, and through special rotor structure design, greatly reduce iron loss and stray loss, the efficiency of the whole machine reaches above IE4 standard, the efficiency is increased by 5-10%, and the power factor is improved 10-15% or more.
It can maintain high efficiency and power factor in the load range of 20% -120%, the power factor can be 1, the three-phase asynchronous motor can only reach 0.86.
Effectively reduce line losses, light-load energy saving is more significant, and improve grid utilization.
