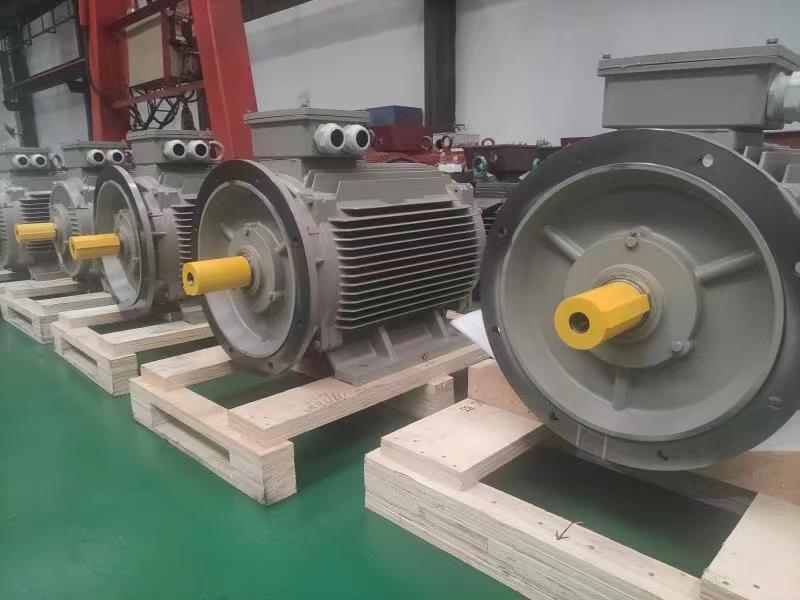

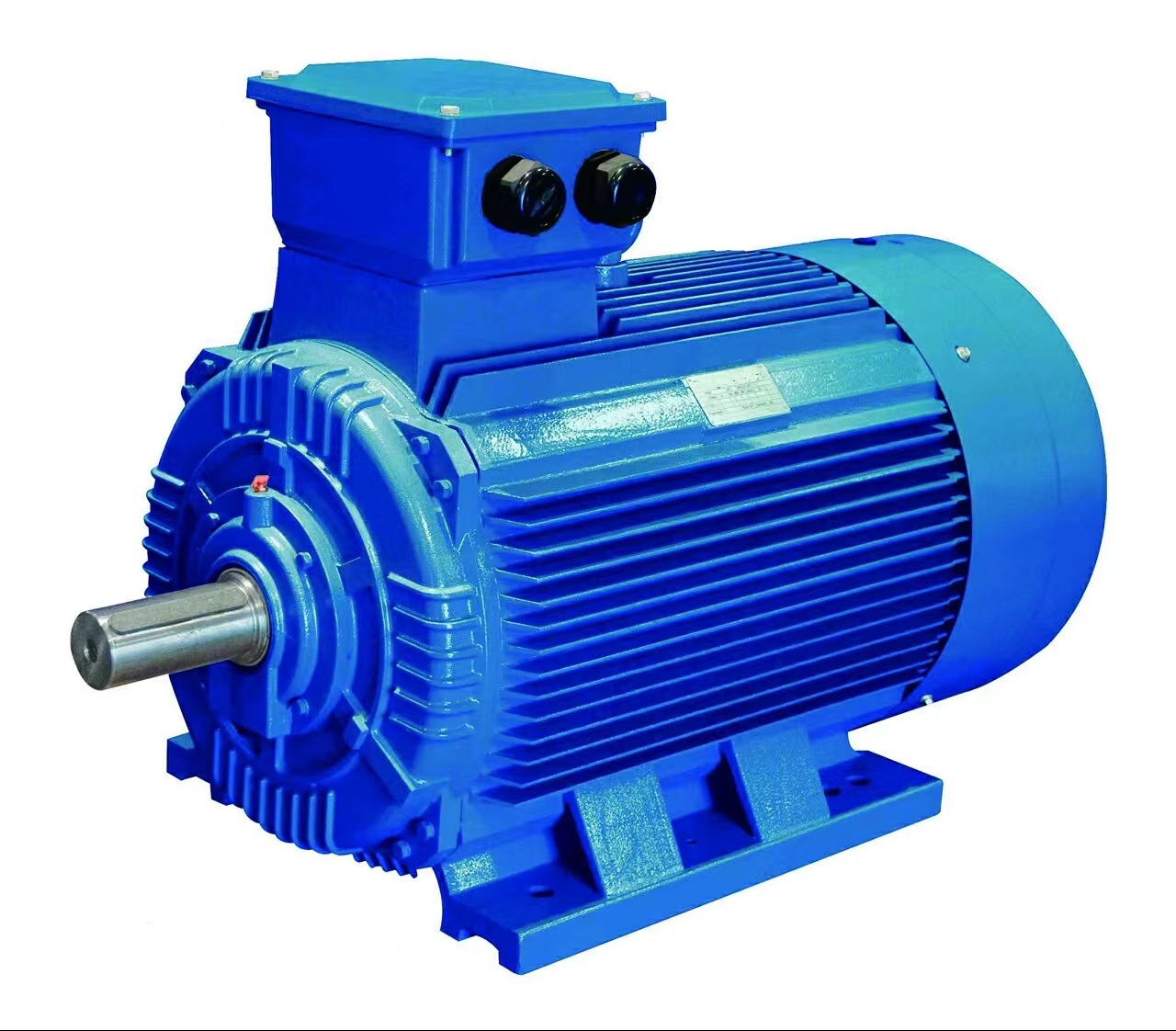

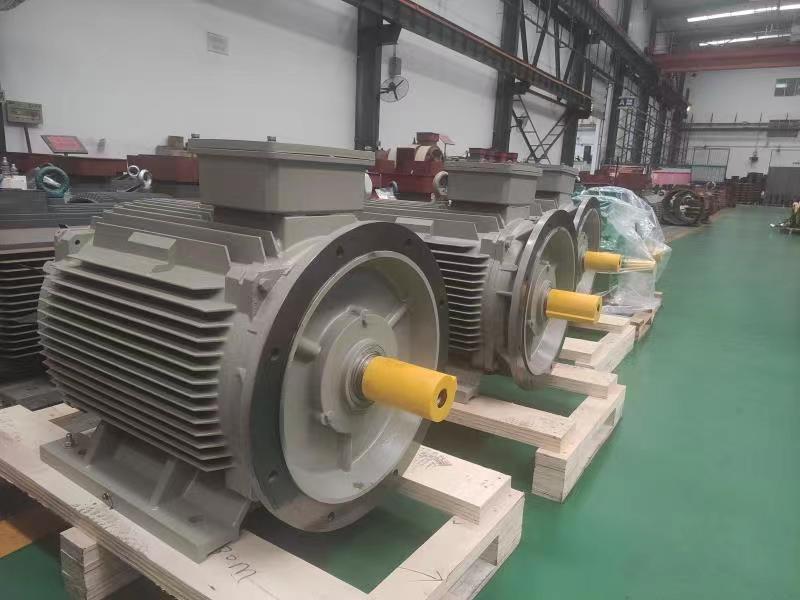

It adopts a universal frame size, which is suitable for driving various mechanical equipment, with good interchangeability; the efficiency is over 95%, the power factor is over 98%, the starting speed is huge, and the overload capacity is strong. This type of motor can be customized according to the actual application requirements of users.
Application: Our General and Standard Type of Permanent Magnet Motor are widely used in power stations, metallurgy, chemicals, water treatment, coal mining, textiles, rubber, petroleum, medicine, paper, cooling tower, food, and other industries to help companies reduce emissions, save energy, reduce consumption, reduce noise to reach green production.
The same installation size with the asynchronous motor.
Due to the same motor frame number with the same asynchronous motor(output<315kW), it can be easily changed.
Note) Some types of motors are longer than asynchronous motors. Details refer to outer dimension drawing.
To reduce the capacity of power receiving equipment.
There is no doubt of high efficiency. Compared with asynchronous motor and standard type synchronous motor, it can reduce the current volume of equipment due to high power factor.
It is PG vector control.
Suitable for the printer, punch compactor, etc.
Motor efficiency is equal to IE4 (Ultra-high efficiency: above GB1 grade)
Note: IE4 is an efficiency grade specified in IEC 60034-30.
|Energy efficiency standards||comply with GB30253-1 grade||Work mode||S1|
|Installation dimensions||comply with IEC standard||Control mode||variable frequency vector control|
|Power range||3 〜315kW||Install type||IMB3 IMB5 IMB35|
|Cooling way||IC411 or IC416||Rated efficiency||50,75,125,150Hz(customized as per requirement)|
|Insulation class||F（H）||Optional parts||Encoder, spiral transformer, PTC, PT100|
|Protection grade||IP54(IP23 customizable)||Wiring type||junction box (aviation plug can be customized as per requirement)|
|Installation||IMB3 IMB5 IMB35||Rated voltage||380V±10%|
|Required environment||Below 1000m altitude|
|Relative humidity below 90%|
Adopt high-efficiency NdFeB permanent magnet, no excitation loss, and through special rotor structure design, greatly reduce iron loss and stray loss, the efficiency of the whole machine reaches above IE4 standard, the efficiency is increased by 5-10%, and the power factor is improved 10-15% or more.
It can maintain high efficiency and power factor in the load range of 20% -120%, the power factor can be 1, the three-phase asynchronous motor can only reach 0.86.
Effectively reduce line losses, light-load energy saving is more significant, and improve grid utilization.
